Automobile

SMI Group represents a sole-distributor for Golden Dragon buses such as express buses, mini-buses, city buses, school buses in joint with Singapore-based award-winning Abwin Pte Ltd.

To facilitate and upgrade Myanmar’s transportation sector, SMI has imported Singapore LTA (Land Transport Authority) approved 25 of 18-seaters buses to serve a route between Mandalay, Myin Chan and Bagan.

SIM also proposed to import more buses to run the express bus service for the routes such as Yangon-Mawlamyaing, Yangon- Mandalay, Yangon-Pa-an and Yangon-Myawaddy.

As a tender offer proposal, SIM bid for importing 30 buses of 7.7-metre shuttle at Airport.

Large Luxury Bus - Explorer

Model : XML6125J

Seats : 44-53

Dimension : L12000 × W2550 ×

H3820

View Photo Gallery

7.7M Minibus

Model : XML6770

Seats : 2-36

Dimension : L7730 × W2050 ×

H2640

View Photo Gallery

Large Luxury Bus - Explorer
7.7M Minibus

GOLDEN DRAGON

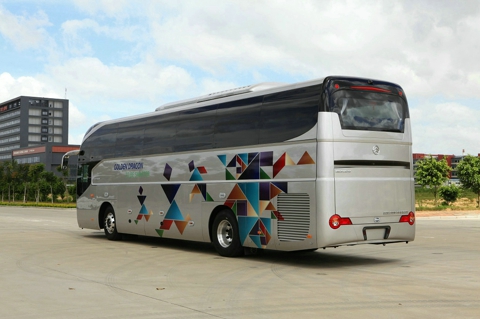

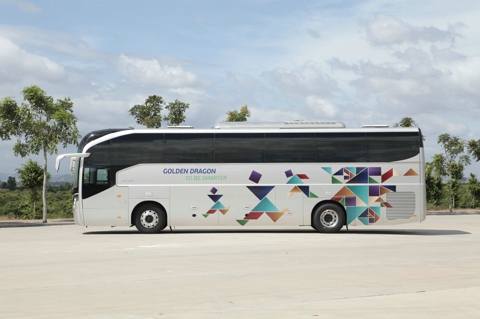

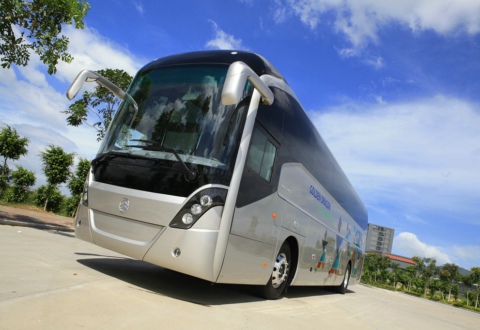

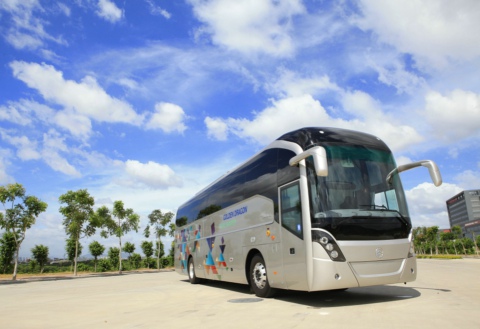

Large Luxury Bus - Explorer - XML6125J

XML6125J “Explorer” is high-class coach developed purposely for the tourism and medium-to-long distance transportation, "Explorer" is of bouncy appearance, spacious cabin, broad vision, and excellent dynamic performance with fuel economy and driving comfort. Based on its rich options and good property towards the favorable price, "Explorer" dedicates to satisfy the requirements from various clients.

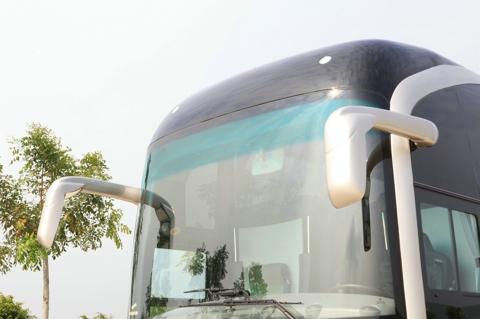

"Explorer" emphasizes the plain outline with divided panels to express the powerful and sculpture like features. Lively combination headlights and the concise taillights demonstrate the design philosophy of sobriety and dynamism.

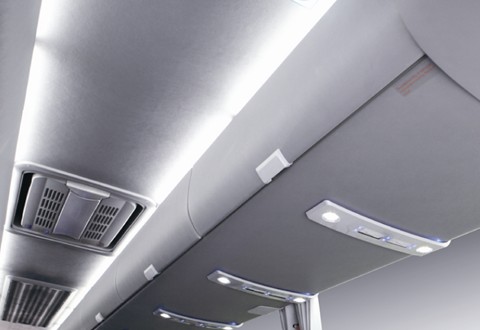

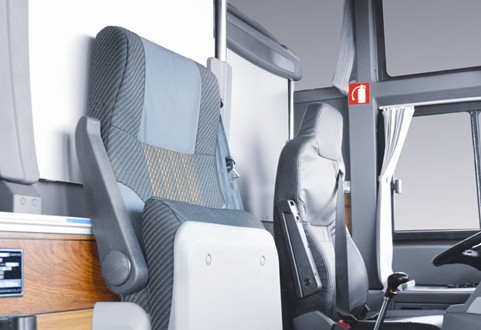

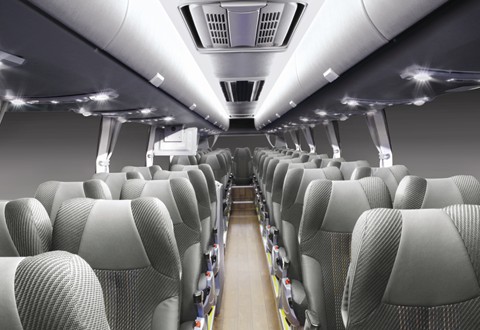

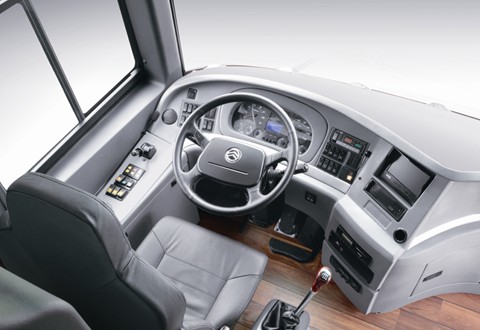

The interiors retain a consistent shaping style incorporative with home design concepts, making the vehicle a modern, luxurious and comfy treatment. The large windows and the proper interior rack design have effectively broadened passenger's vision. The rack console has equipped for the individual control on reading lamp, vent flow, as well as service button on passenger’s convenience.

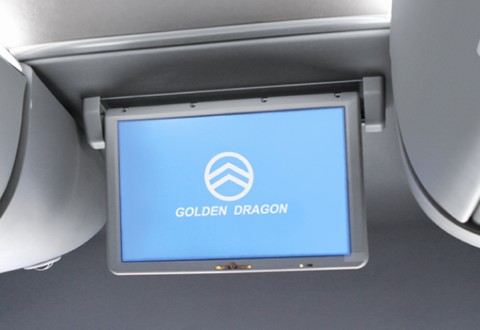

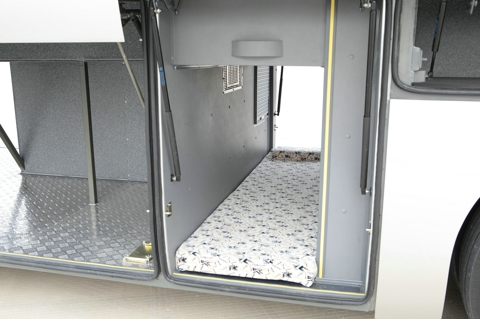

In order to meet the various requirements, customized items would be provided, such as lavatory, water dispenser, refrigerator and multi-channel A/V systems. Air conditioning and heating systems are optional for the regions of different weather conditions, like the tropic, the temperate and the frigid climate. The seats layout can be arranged for different purpose with capacity up to 53 (driver inc.), and with the option of wheel chair facility.

Technical Specification
General Data
Application	Coach
Type	EXPLORER XML6125J
Overall Length/Width/Height(mm)	12000×2550×3820
Wheelbase(mm)	6000
Overhang Front/Rear(mm)	2650/3350
Angle of Approach/Departure	8°/8°
Kerb Weight/Gross Vehicle Weight	13000-13400kg/18000kg
Turning Circle(m)	<25
Drive Line
Engine	YUCHAI YC6M360
	WEICHAI WP10.375
	CUMMINS ISME360, (EURO III and EURO IV)
Transmission	QJGT MT 6 Gears，Option: ZF MT and ZF AT
Fule Tank	450L，Option: Up to 800L
Adblue Tank (for EuroIV&above)	Up to 80L
Chassis
Front Axle	Standard: Chinese 6.5T, Option: MERITOR 6.6T
Rear Axle	Standard: Chinese 13T, Option: MERITOR 13T
Steering System	ZF8098
Brake System	Standard: Drum Brake System and ABS, Option: Full Discs Brake System
Auxiliary Brake	Voith Hydraulic Retarder
Suspension	6 Air Suspensions, Option: ECAS
Bodywork
Bodywork Frame	Monocoque
Front/Rear Panels	Glass Reinforced Plastic
Side Panels	Steel Sheets, Aluminum Side Door
Door Arrangement	1-1, Outward Swinging Door
Height of First Step(mm)	380
Number of Seats	1. 51+1+1, 2. 49+1+1, with Lavatory 3. 47+1+1, with Lavatory 4. 42+1+1, with Luxury Seats and Lavatory
Roof Safety Hatches	2 Units
Ventilation and Air Conditioning
Air Conditioning	Cooling Output: 35KW
Ventilation	Ventilation Fans on A/C and Roof Hatches
Passenger Compartment Heating	Defroster and Convector, Option: Under Seat Heaters, Stair Heaters, Bunk Heaters
Electrical system
Voltage & Battery	24V,2*200Ah
Wiring System	Based on BUS-CAN

GOLDEN DRAGON

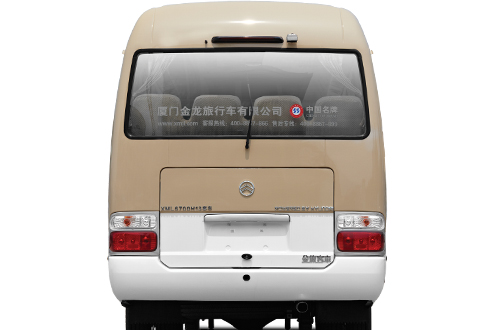

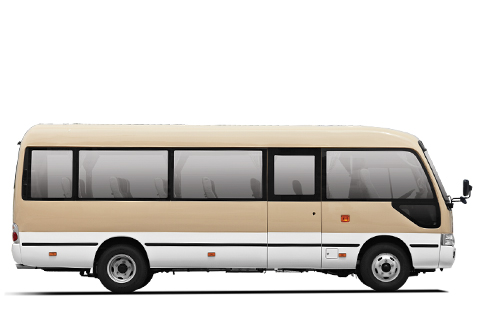

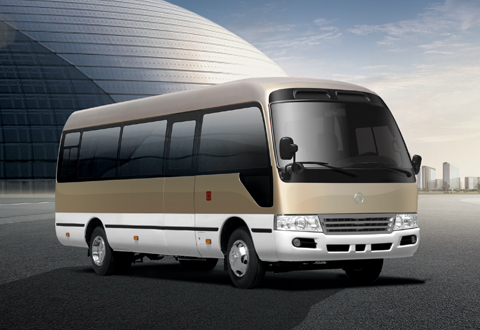

7.7M Minibus - XML6770

XML6770 inherits the body structure of classic XML6700 and adopts the constant-pressure rigid closed loop design of Golden Dragon, with full metal stamping skinning. The lengthened wheelbase and rear overhang endow XML6770 a better comfort and stability.

Meanwhile, Golden Dragon XML6770 has lengthen its body with a maximum seats of 31, and is equipped with a 3.8L engine; comparing to other similar products, it provides superior carrying capacity and comfort; with the adjustment of the front wheel positioning and the improved suspension, the driving and operating stability is enhanced; many optimized designs are adopted, such as the improvement of brake system, adoption of aluminum alloy air cylinder, increase of fuel tank capacity, improvement of tire grade and the like.

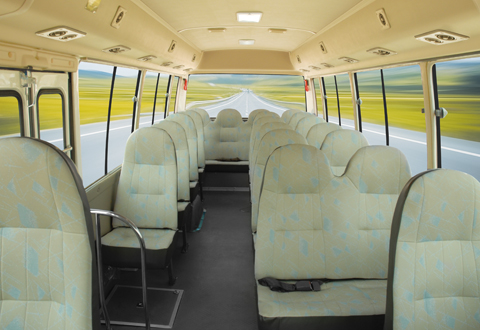

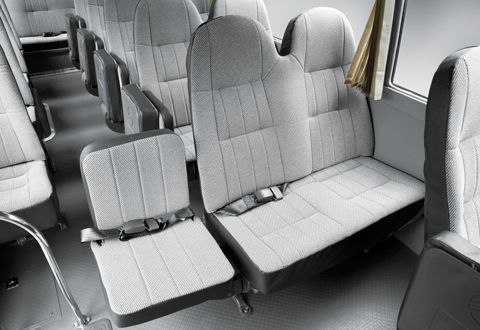

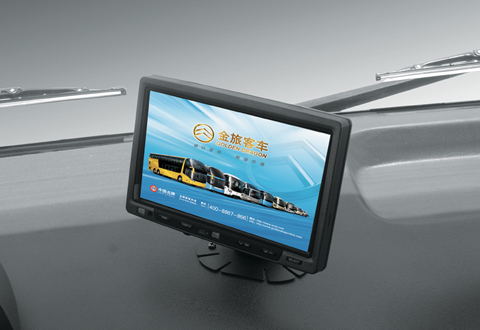

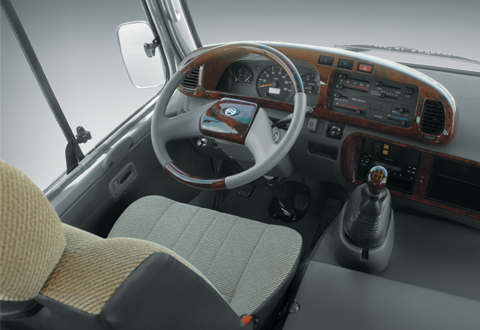

More thoughts and ideas have been integrated into the interior trim manufacturing of XML6770. Even the installation positions of the newly developed instrument desk, reserved display screen, monitor and the like are determined with careful consideration. The driving environment with more elegant style and more convenient operation will bring you more comfortable driving experience.

Technical Specification
Model	XML6770J18
Dimension	7730mm2050mm 2730,2830mm

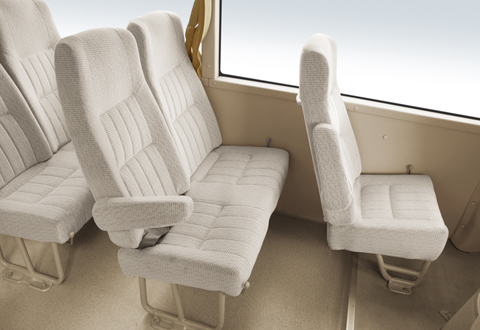

Seats	2-32(including driver)
Max speed	≥100 km/h
Engine model	ISF3.8S4141
Emission control	Eruo Ⅳ
Max power	105kw/2600rpm
Max torque	450N.m/1200-2200rpm
Clutch	Single disk, hydraulic operation	No
Transmission	Manual, six gears	Allson1000 AT
Tire	Radial tyre 215/75R17.5
Steering	Power steering, hydraulically assisted
Suspension	Leaf spring suspension

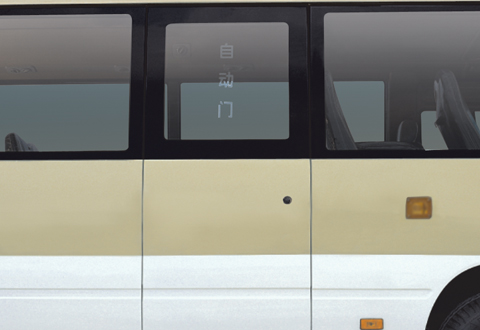

Passenger door	Electric folded passenger door
Brake	Air brake, drum type, dual-circuit
Air conditioner	Non-individual, 12000 kcal/h, Chinese compressor
A/V	Radio cassette play

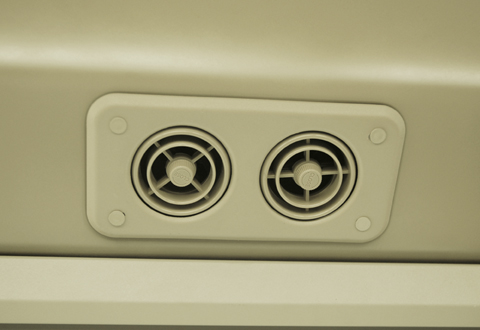

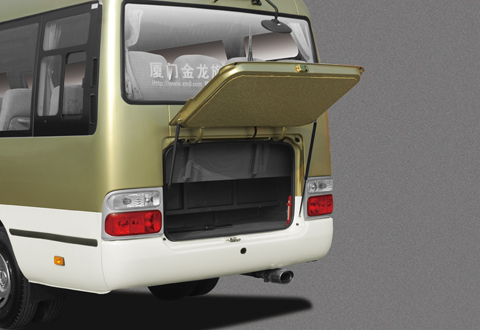

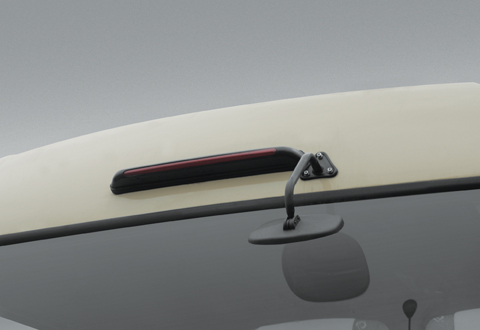

Other option	Reversing monitor,VCD/DVD + 15 inch LCD monitor,high position brake lamp,curtain, luxury floor mat(with quartz sand), electric ventilator, electric outward swing passenger door, rear door
